Conductivity Sensor Options

There are three ways for quoting Conductivity:


1. Krypton Multi with the EC Add-on (need to know conductivity range to program within the Krypton Multi)

This threads into normal acrylic flow cell.

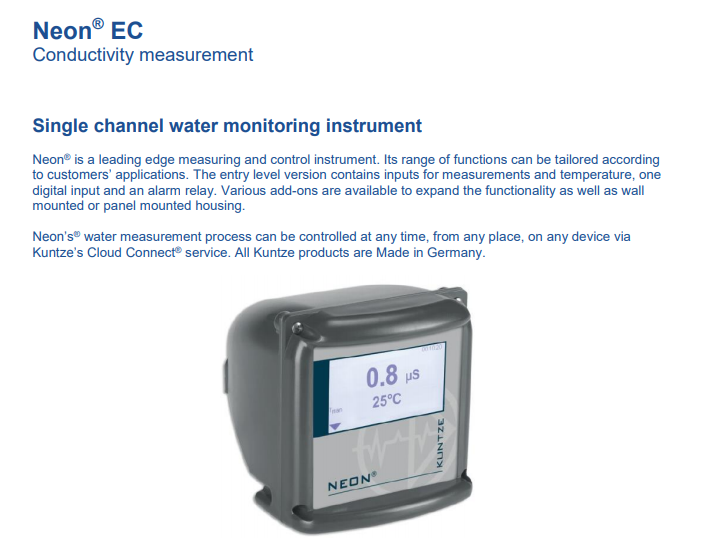

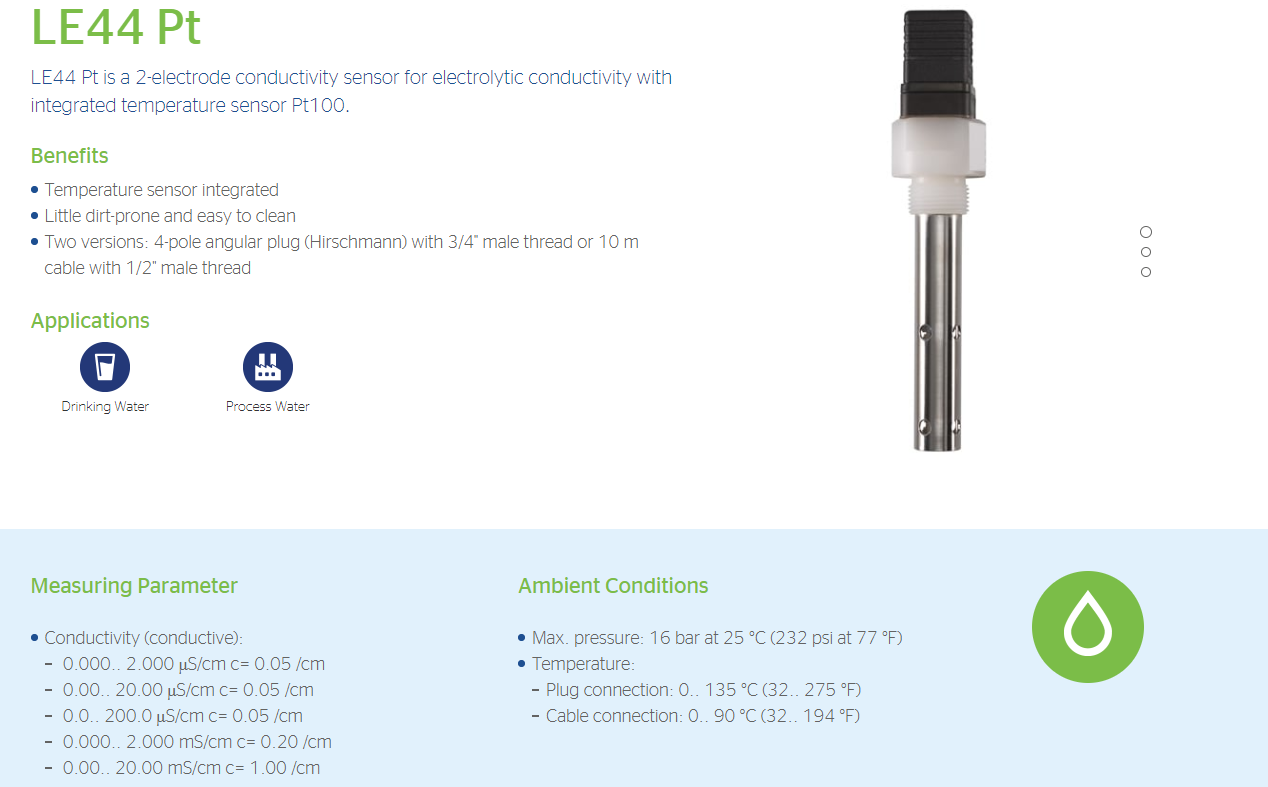

2. Neon EC instrument with LE-44 PT sensor (tempearature integrated) Mainly used for low conductivity applications such as drinking water. Need to know the customer conductivity range to choose the correct LE44 sensor/range and the correct c-value.


There are 2 methods of installation:

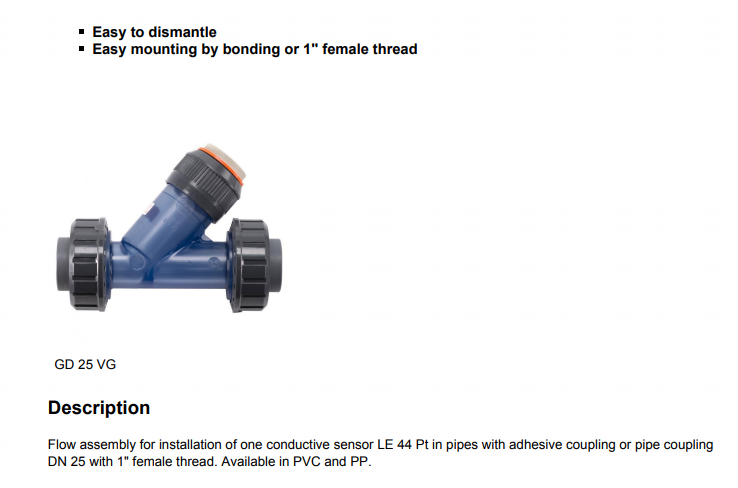

- In pipe fitting ( GE- 25 V(G) PP

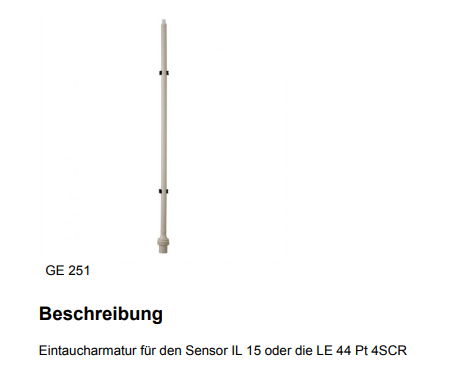

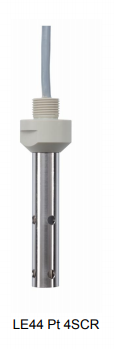

- Submersible fitting (GE 251 PP LF) * However you will need the different LE44 PT (4SCR)

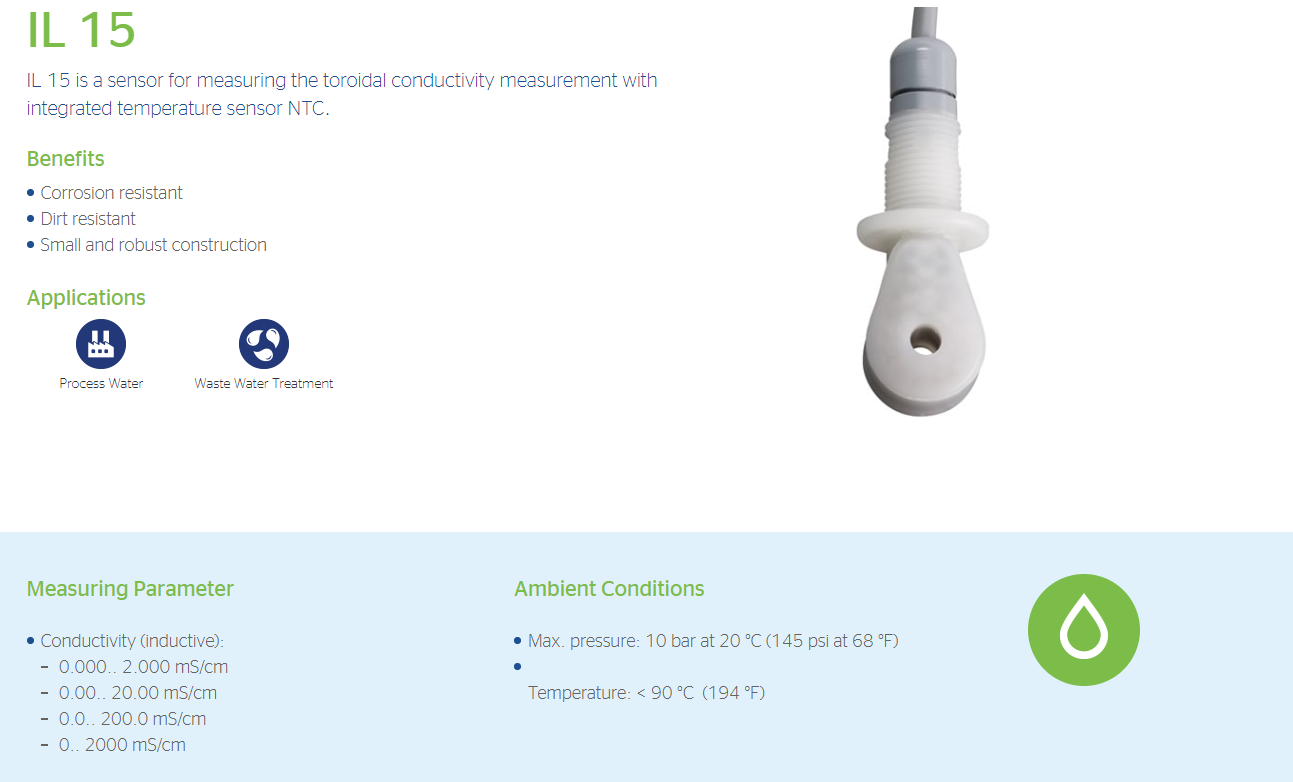

3. Neon IL instrument with IL 15 sensor - Measuring range is selectable within instrument so it is not so critical for measuring range. Meant for dirty water (fracking sites, wastewater applications)

There are 2 methods of installation:

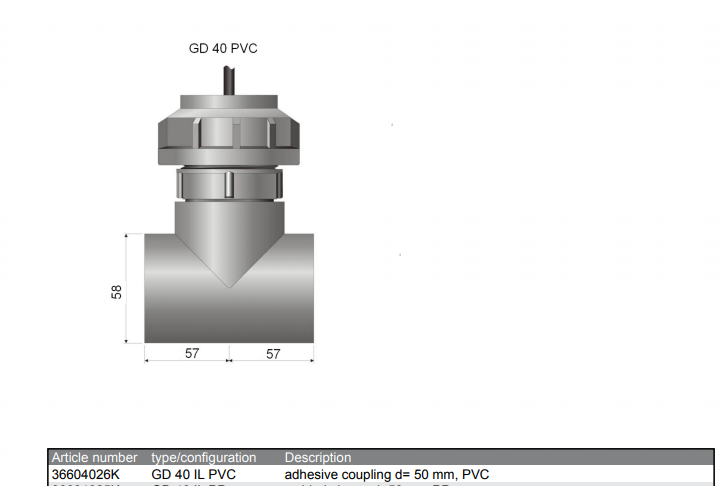

- In process thread in pipe (GD40 IL PVC)

Image preview

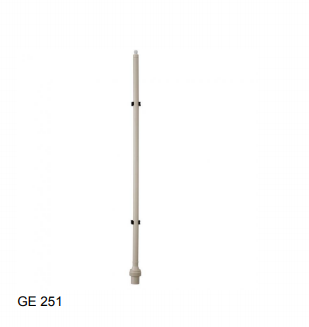

- submersible fitting (GE 251 PP LF)
