This article summarizes the difference between free and total chlorine.
Important Terms to Know
> Free chlorine: combination of Cl2, HOCl, and OCl-
> Combined chlorine: consists of mostly chloramines, which are formed when ammonia is added to free chlorine, yielding monochloramine (NH2Cl), dichloramine (NHCl2), trichloramine (NCl3), and organic chloramines
> Total chlorine: combination of free and combined chlorine in solution

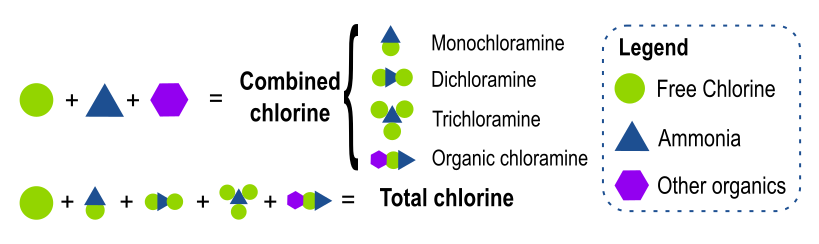

The above graphic illustrates the relationship between free, combined, and total chlorine. When free chlorine (shown by the green circle) is added to a solution containing ammonia and other organics, combined chlorine forms. Combined chlorine consists of monochloramine (NH2Cl), dichloramine (NHCl2), trichloramine (NCl3), and organic chloramines. Total chlorine encompasses all of the free chlorine and whatever forms of combined chlorine might be present.
Which Measurement Should You Use?
For applications that contain no ammonia, a free chlorine measurement is
appropriate. For applications where ammonia or chloramines might be present (e.g.
wastewater and drinking water), a total chlorine measurement is appropriate.
What Makes The Measurements Different?
The main difference is which probe you will use. The Kuntze Zirkon® DIS sensor is for free chlorine measurement, and measures the presence of only hypochlorous acid (HOCl). The Kuntze Zirkon® DIS Total sensor measures the presence of both HOCl and hypochlorite (OCl-), which allows the analyzer to give a total chlorine measurement.
Important Things to Keep in Mind
> Be sure your reference measurement is configured to measure the correct parameter, and
that you have purchased the correct reagents to do so.
> The free chlorine measurement works best below pH 8.5, while the total chlorine
measurement is capable of going up to pH 10.
> If you have any further questions, please contact a Kuntze representative or submit a ticket.
