A United States power cord is provided on all instruments that have a line voltage of 85-265 V AC, 50-60 Hz
In the case that you need to connect an alternative power supply you will need to provide your own power cord.
IMPORTANT: DO NOT attempt to open the instrument while connected to a power supply. You could injure yourself or the instrument.
Step 1:

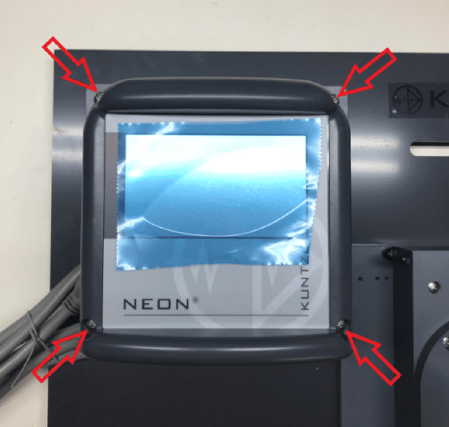

For the Krypton® DIS, you will need to access the back of the instrument by unscrewing 4 Philip head screws. (see image below)
Step 2:

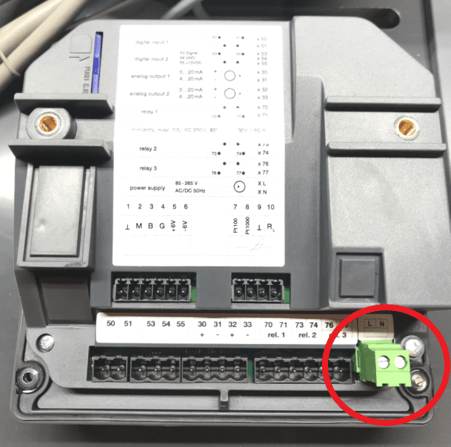

Locate the power terminal on the back of the instrument. (see image below) It is indicated by the L for Live and N for Neutral.
Step 3:

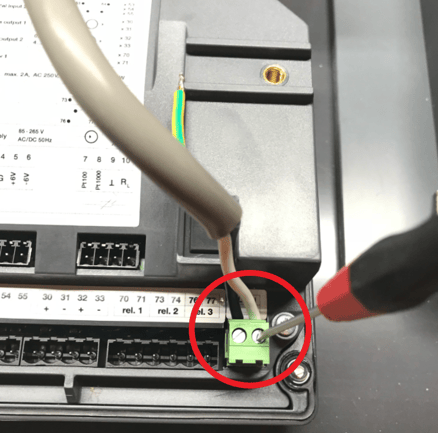

Insert your power cord into the housing enclosure and connect to the terminals L and N with the appropriate wires. You will need a small flat head screw driver to tighten the wires in the terminals. (see image below)
Note: There is not a ground option for Krypton® DIS.
Step 4:
Be sure all connection terminals are in the proper place and tighten the instrument back on the housing with the 4 Philip head screws as shown in Step 1.
