A United States power cord is provided on all instruments that have a line voltage of 85-265 V AC, 50-60 Hz
In the case that you need to connect an alternative power supply you will need to supply your own power cord.
IMPORTANT: DO NOT attempt to open the back of the instrument while connected to a power supply. You could injure yourself or the instrument.
Step 1:
Open the lid to the enclosure. See How to Open and Close the Krypton® Multi
Step 2:

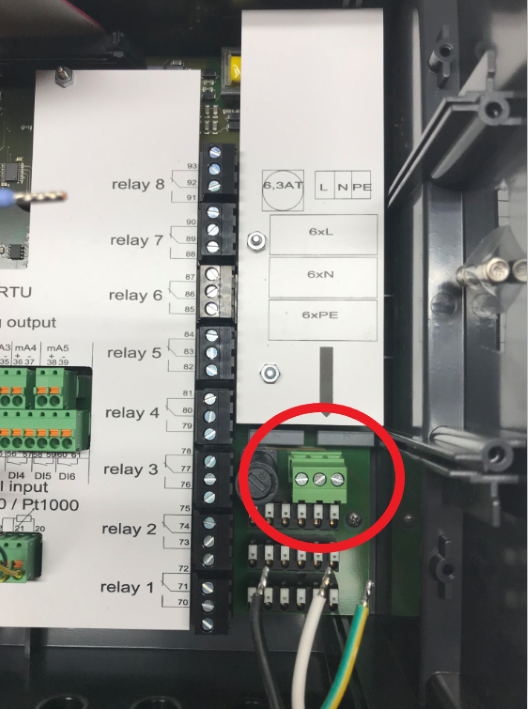

Locate the power terminal and put the power cord through the outside of the enclosure.
Step 3:

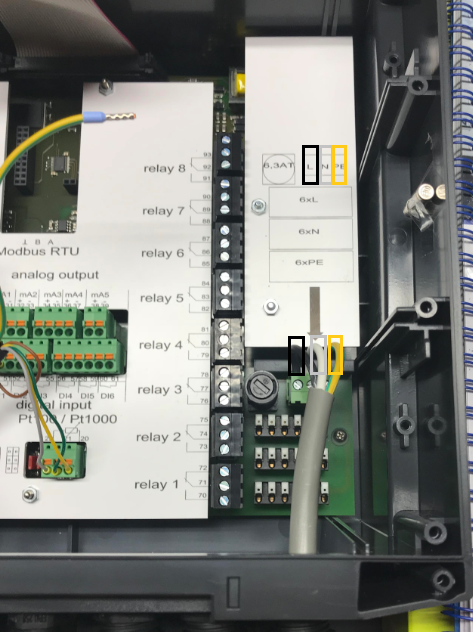

Put the power cord wires into the appropriate terminal. L-Black (Live), N-White (Neutral), PE (Ground) -Yellow/Green. (see below image) You will need a small screwdriver to tighten the wires in the terminals.
Step 4:
Close the lid to the enclosure and plug the power cord into the power supply.
