Using the Zirkon® DIS Test Plug - Krypton® DIS

Understand what a DIS test plug does and how to use it with the Krypton® DIS analyzer

The Zirkon® DIS Test plug is a way to test if the disinfection cable is operating properly and if the instrument is accepting the proper mV signal.

The Zirkon® DIS test plug is available for purchase. Please contact your Kuntze representative for a quote.

Steps for using the test plug:

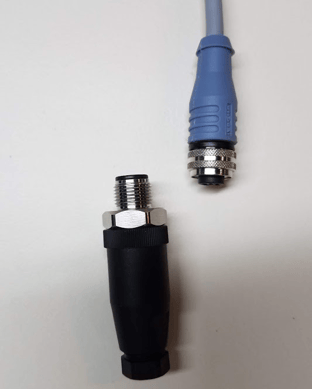

1. Unscrew the cable from the disinfection sensor

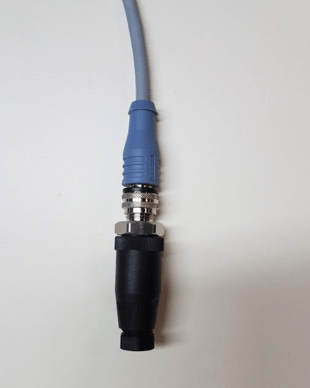

2. Screw the test plug on the end of the sensor cable

 >

3. Go to Main Menu > Cal > Cal DIS > look for the mV value that appears on this screen

mV value for measuring ranges: This mV value can be +/- 10mV

0-1000 = -300 mV

0-5 ppm = -60 mV

0-10 ppm = -30 mV

0-20 ppm = -15 mV
