Inserting Modbus Card for Krypton® Multi

Follow the steps below to insert the Modbus card into the analyzer

Disconnect the instrument from the power supply and remove all potentially connected cables.

Open the housing of the Krypton® Multi. Remove the Modbus module from its packaging and align the pins of the module with the connectors on the main board.

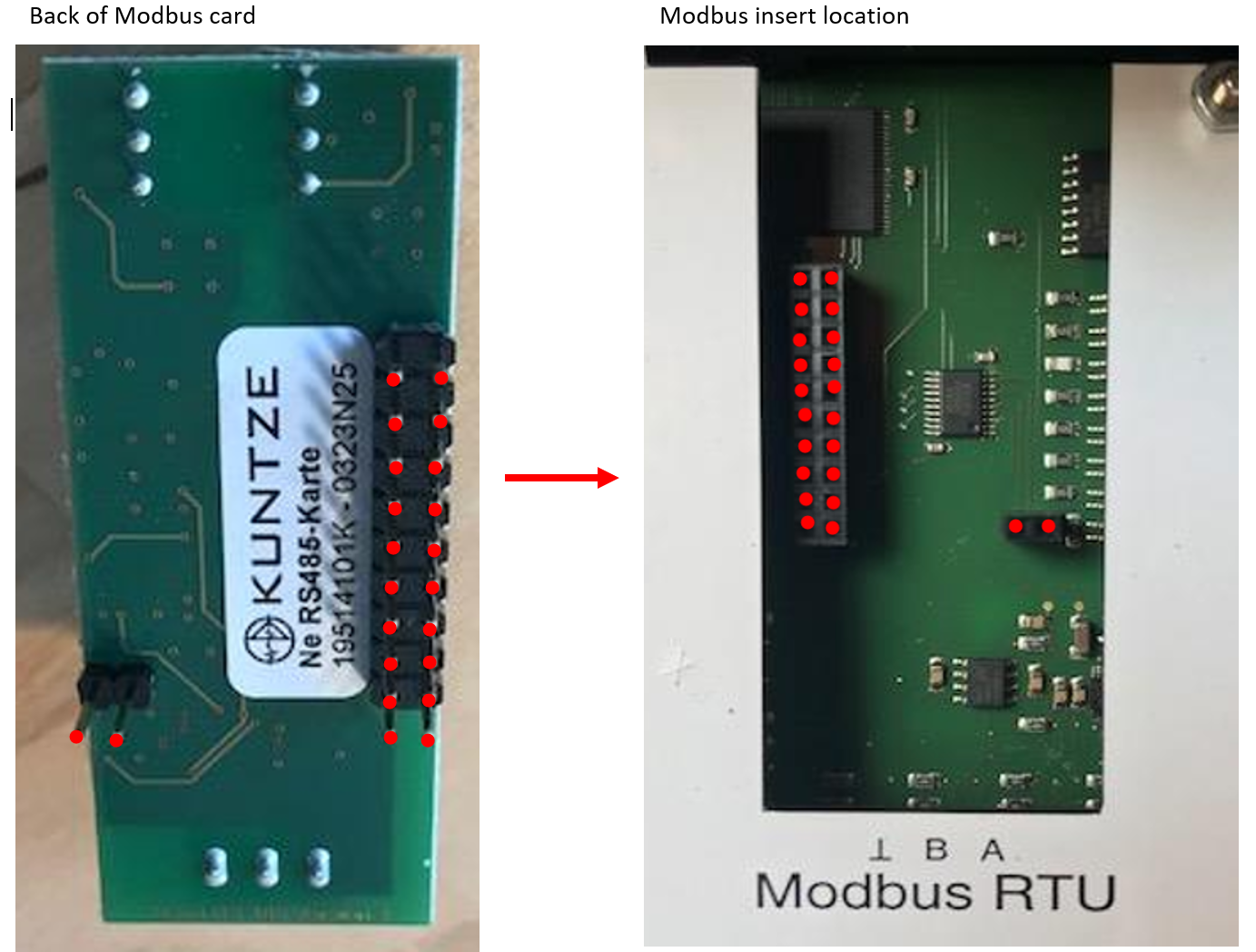

There are 22 prongs that line up with the back of the Modbus card to the Modbus card insert location. Be careful to match these prongs up perfectly or the Modbus connection will not work. See also, Gateway Wiring Connections
