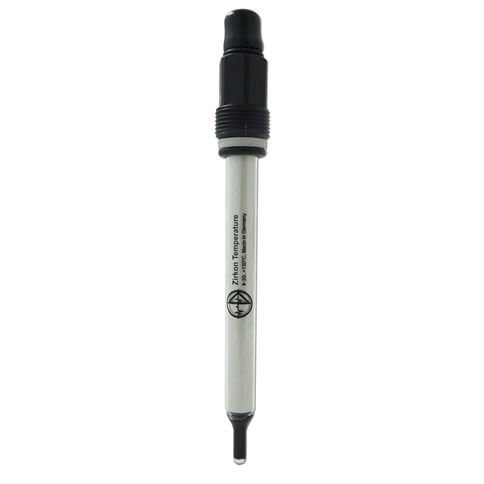

Zirkon® Temperature

Zirkon® Temperature is a high quality temperature sensor based on the resistance change of platinum wire as a function of temperature.

Benefits

Fast response - t90 = 15 sec
Chemical resistant
Pt100 and Pt1000 available

Applications

Laboratory

Laboratory

Drinking water

Drinking Water

Food & Beverage

Food & Beverage

Process Water

Process Water

Zirkon® Temperature

Measuring Parameter

Temperature -20 to 130.0°C (-4 to 266°F)

Ambient Conditions

Maximum pressure: 16 bar at 20°C (232 psi at 68°F)

Versions

Type/Configuration	Description	Article number
271100100	Temperature sensor: Pt 100, S8 plug (swivel PG 13,5), 120 mm	24137011K
271200100	Temperature sensor: Pt 1000, S8 plug (swivel PG 13,5), 120 mm	24137012K
271100320	Temperature sensor: Pt 100, S7 plug, 160 mm	24137000K

Order information

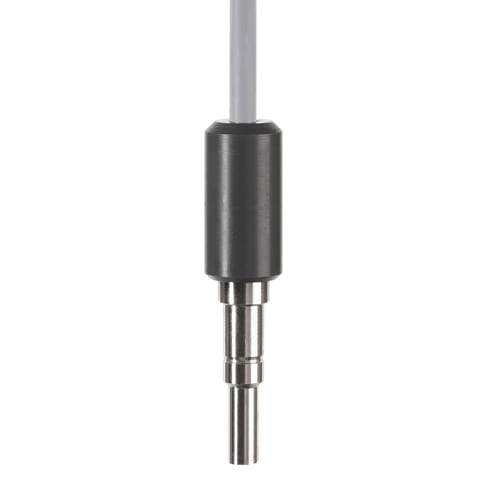

Zirkon® FTG

Zirkon® FTG monitors flow and temperature in the Argon® Stabiflow. Additionally it can be used as a ground.

Benefits

Brine resistant
Fast response
Chemical resistant

Applications

Disinfection

Disinfection

Pool & Spa

Pool & Spa

Drinking Water

Drinking Water

Food & Beverage

Food & Beverage

Zirkon® FTG

Measuring Parameter

Temperature -5.0 to 70.0°C (23 to 158°F)

Measuring parameter and range are defined by the connected Kuntze instrument or system.

Ambient Conditions

Maximum pressure: 6 bar at 20°C (87 psi at 68°F)
Temperature: 0.0 to 50.0 °C (32 to 122°F)

Versions

Type/Configuration	Description	Article number
FTG	Flow monitor, temperature sensor and ground for Argon® Stabiflow	24137001K

Pt-55-W

Pt-55-W is a temperature sensor and flow switch for applications that do not require the Argon StabiFlow®.

Benefits

Flow switch included
Based on resistance change of platinum as a function of temperature

Pt-55-W

Ambient Conditions

Max. pressure: 6 bar at 20°C (87 psi at 68°F)

Versions

Type/Configuration	Description	Article number
Pt-55-W	Flow sensor with reed contact and integrated Pt100	24137030K
