Total Chlorine

Krypton Series

Key Features:

  • Rapid sensor response
  • Best-in-class manual sensor cleaning
  • Stable and accurate measurement even in challenging water conditions
  • No flexible membrane or electrolytic gel replacement
  • No reagents or consumable
  • No mechanical moving parts
  • Low lifecycle cost

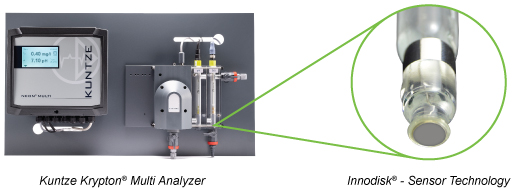

Krypton Multi

Clear. Control. Connect.

Bare Sensor Technology

Kuntze exclusively employs bare sensor technology, providing attractive advantages over both DPD and covered membrane sensor measurements.

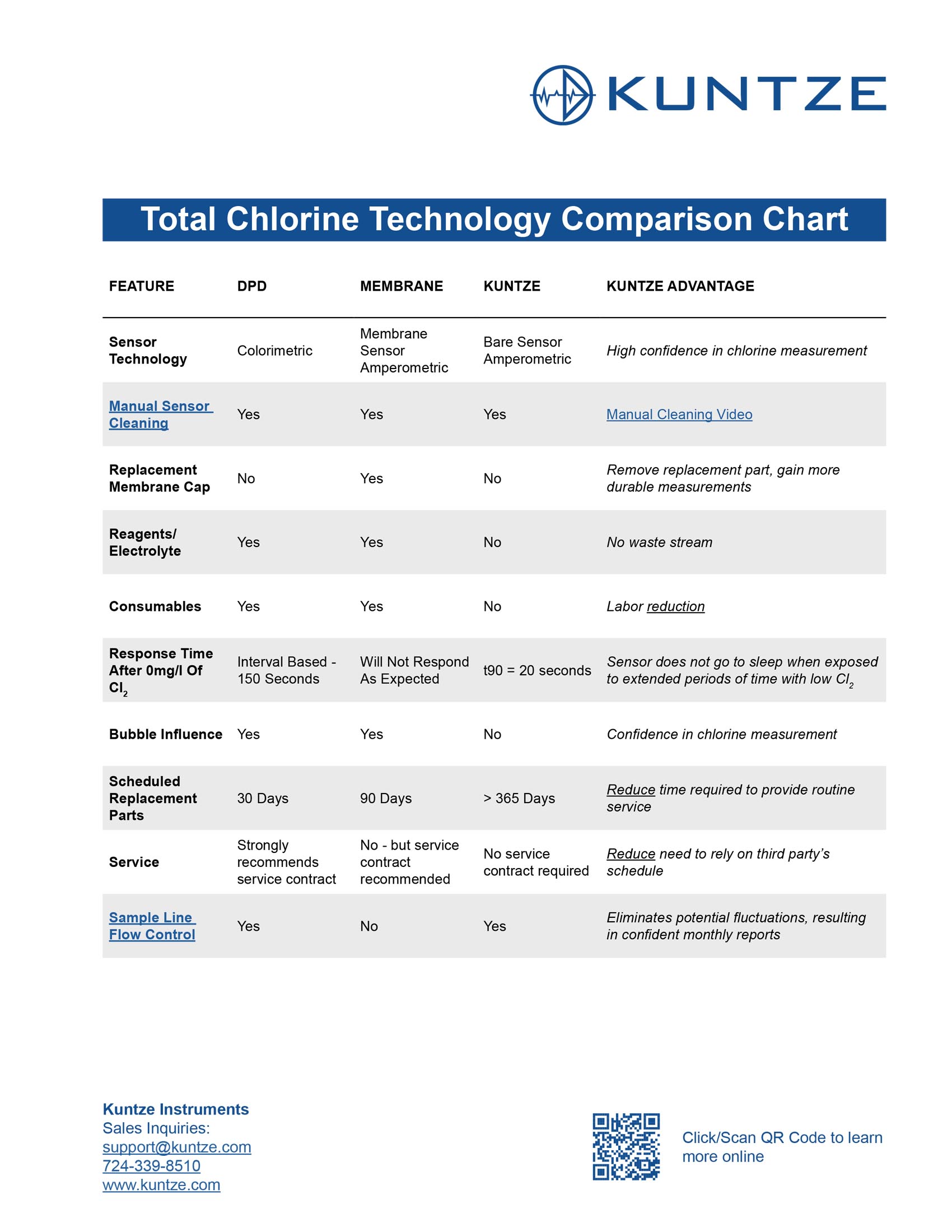

Total Chlorine Comparison Chart

Download the Total Chlorine Comparison Chart

Building best-in-class measurements

Kuntze engineered core components, optimized for precise and reliable online measurements.

Zirkon DIS Sensor Cleaning

Cleaning

Manual Cleaning

  • Fast and easy
  • Commonly used household cleaning materials
  • Sensor returns to use quickly

Flow

Argon Stabiflow ®

The Argon Stabiflow® is a critical component of the Kuntze disinfectant measurement. The Argon StabiFlow® assembly eliminates deviations caused by changing flow rates and can be used with any of Kuntze disinfectant sensors.

Argon Stabiflow
pH Compensation_updated_6-27

pH

Compensation

All amperometric free chlorine measurements (not just Kuntze's) are subject to variables that either need to be controlled, buffered, and/or measured for compensation. A free chlorine measurement can be produced when the below variables are attended to.

Krypton_FTG_Sensor_web

Temperature

Compensation

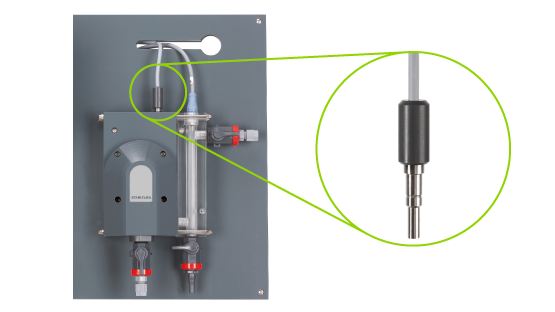

As with most electrochemical measurements, the Kuntze bare sensor measurement offers integrated temperature compensation.  The temperature sensor acts two-fold as the integrated flow switch.

Specifications of the Kuntze Measurement

Power Requirements

Kuntze measuring instruments come standard with universal power supplies that accept:

Standard: 85-265 VAC 50-60 Hz.
Optional: 24 VDC versions available

Flow Requirements

Flow pressure minimum: 5 psi at 20C
Flow pressure maximum: 87 psi at 68F or 6 Bar at 20C
Flow rate minimum: 9 gph or 35 l/hr
Flow rate maximum: NA

The Argon Stabiflow flow regulator is designed to manage and control the flow rate across the Kuntze Zirkon measuring electrodes. This ensures proper DIS measurement and improves overall sensor life expectancy.

The internal diaphragm regulates the analyzer outlet to 8 gph or 30 l/hr

Inputs / Outputs

Kuntze amperometric chlorine measuring technology complies with EPA Method 334.0 hardware guidelines.

KRYPTON MULTI

Download Datasheet
Download Flyer
Download Manual

KRYPTON DIS

Download Datasheet
Download Manual

FCl DATASHEET

Download Datasheet

TOTAL CHLORINE DATASHEET

Download Datasheet

TECHNOLOGY COMPARISON CHART

Download Chart

DRINKING WATER BROCHURE

Download Brochure

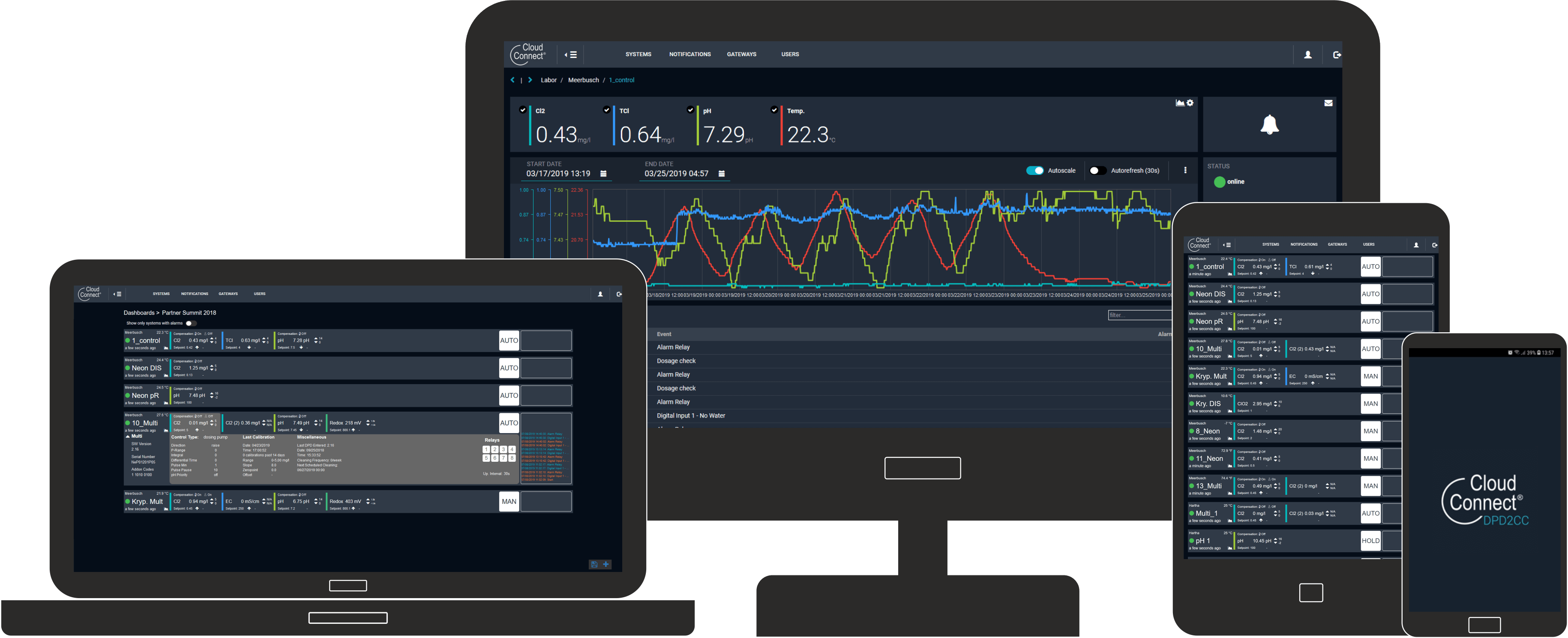

Kuntze Cloud Connect

Kuntze Cloud Connect
Cloud Connect

Powerful 24/7 Data Monitoring

  • Optimized asset utilization
  • Increased productivity
  • Reduced maintenance costs
  • Simple usability and precise control on your measurement
  • Bi-Directional
