Key Features:
Bare Sensor Technology
Kuntze exclusively employs bare sensor technology, providing attractive advantages over both colorimetric and membrane sensor technologies.

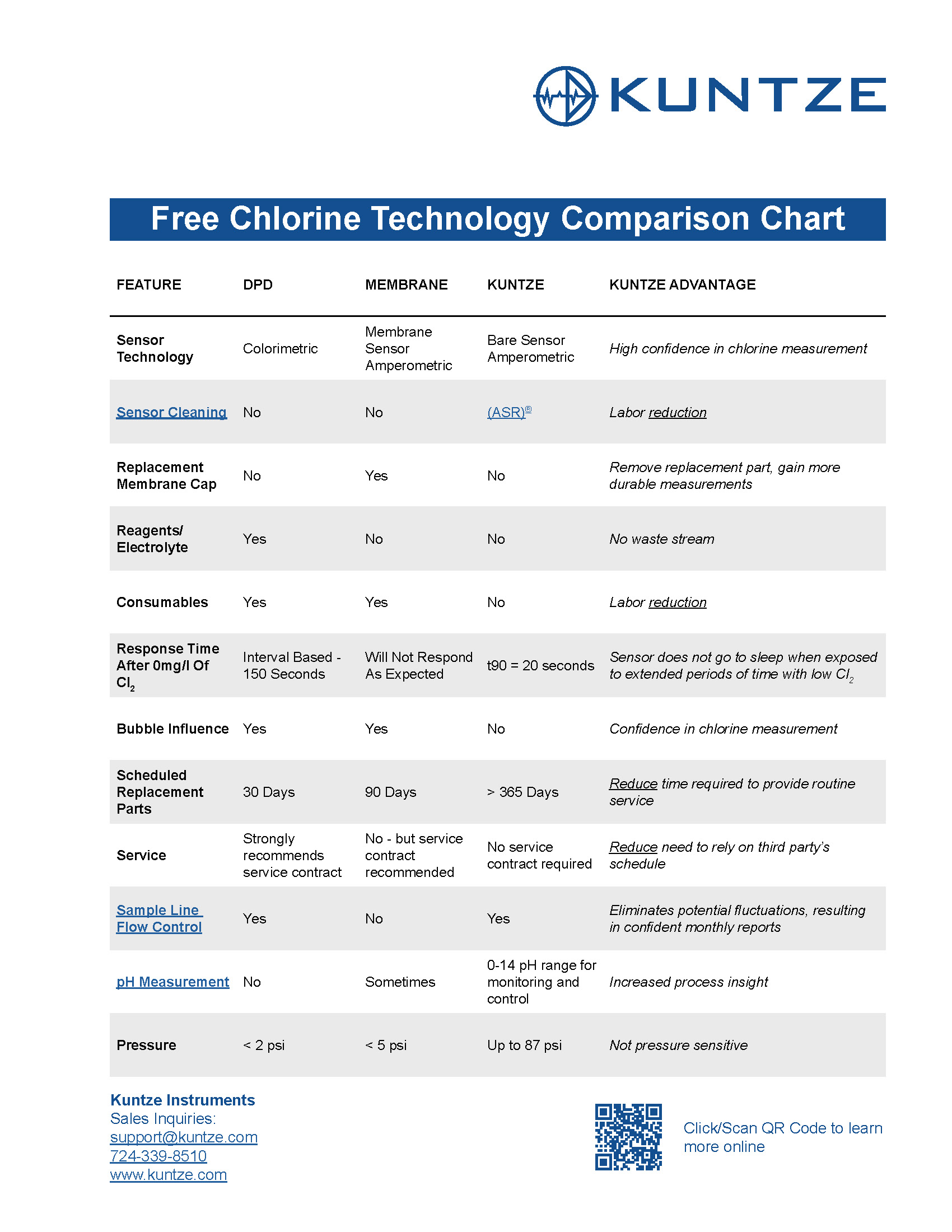

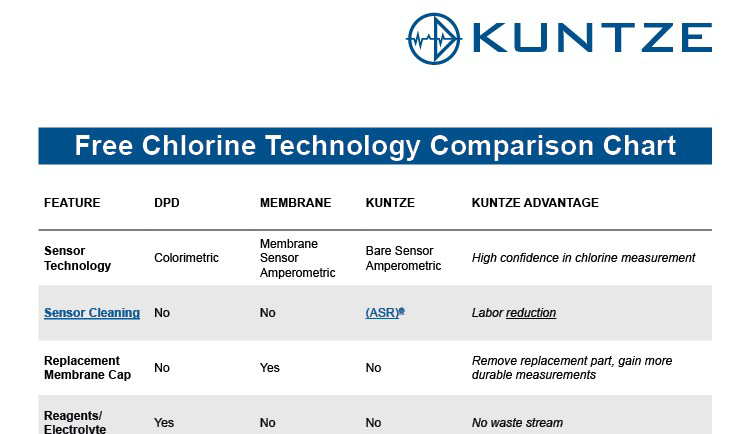

Download the Free Chlorine Technology Comparison Chart
Kuntze-engineered core components are optimized for precise and reliable online measurements.

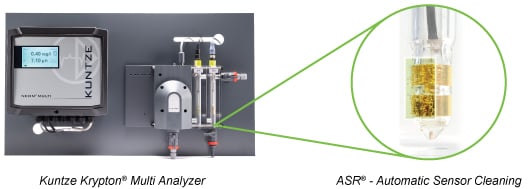

Automatic Sensor Cleaning (ASR) ®
Manual Cleaning
Argon Stabiflow ®
The Argon Stabiflow® is a critical component of the Kuntze disinfectant measurement. The Argon StabiFlow® assembly eliminates deviations caused by changing flow rates and can be used with any of Kuntze disinfectant sensors.
Compensation
All amperometric free chlorine measurements are subject to variables that either need to be controlled, buffered, and/or measured for compensation. Kuntze's Neon® and Neon Multi® have built-in pH compensation algorithms to enable a free chlorine measurement.
Compensation
As with most electrochemical measurements, the Kuntze bare sensor measurement offers integrated temperature compensation. The temperature sensor also acts as the integrated flow switch.
Kuntze measuring instruments come standard with universal power supplies that accept:
Standard: 85-265 VAC 50-60 Hz.
Optional: 24 VDC versions available
Flow pressure minimum: 5 psi at 20C
Flow pressure maximum: 87 psi at 68F or 6 Bar at 20C
Flow rate minimum: 9 gph or 35 l/hr
Flow rate maximum: NA
The Argon Stabiflow flow regulator is designed to manage and control the flow rate across the Kuntze Zirkon measuring electrodes. This ensures proper DIS measurement and improves overall sensor life expectancy.
The internal diaphragm regulates the analyzer outlet to 8 gph or 30 l/hr
Kuntze amperometric chlorine measuring technology complies with EPA Method 334.0 hardware guidelines.
