Zirkon® DIS Total

(Total Chlorine)

Zirkon® DIS Total is an open potentiostatic sensor for measuring chlorine compounds.

Benefits

  • No exchange of membrane
  • No exchange of electrolyte
  • No delicate plastic membrane
  • Immune to air bubbles
Disinfection

Disinfection

Drinking Water

Drinking Water

Zirkon® DIS Total (Total Chlorine)

Ambient Conditions

  • Max. pressure: 6 bar at 20°C (87 psi at 68°F)
  • Min. conductivity: >150 µS/cm
  • Temperature: 0.. +50°C (32.. 122°F)
  • pH: 6-10

Zirkon® DIS
(Free Chlorine)

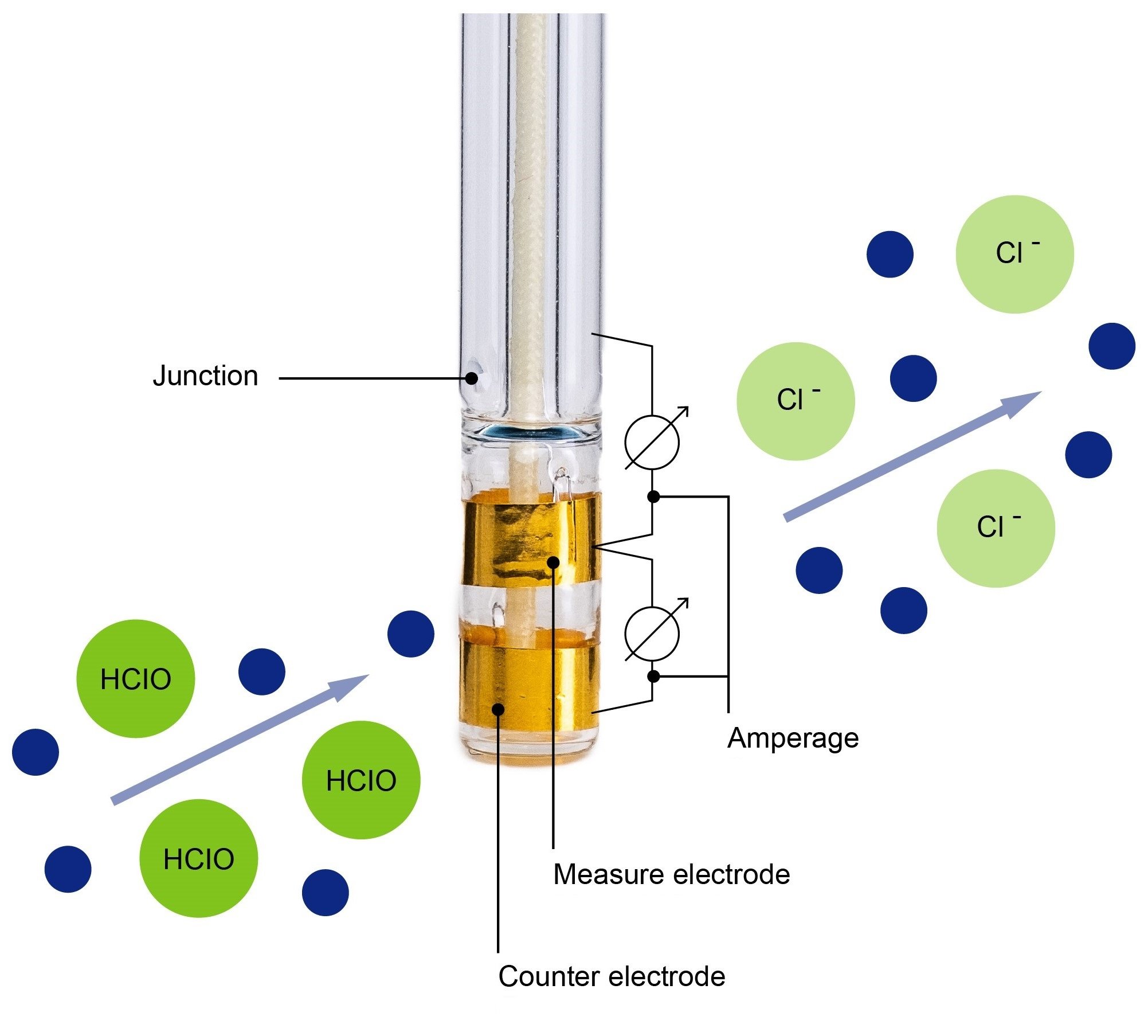

Zirkon® DIS is a potentiostatic sensor for measuring Free Chlorine.

Benefits

  • Low maintenance and robust

  • Stable zero point

  • Reliable measuring values

  • Long operating life due to automatic sensor cleaning by ASR®

Applications

Disinfection

Disinfection

Drinking Water

Drinking Water

Zirkon® DIS (Free Chlorine) Zirkon® DIS (Free Chlorine) Zirkon® DIS (Free Chlorine)

Measuring Parameter

  • 0.. 1000 µg/l (ppb)

  • 0.. 5.00/10.00 mg/l (ppm)

  • 0.. 20.00 mg/l (ppm)

Measuring parameter and range are defined by the connected Kuntze instrument or system.

Ambient Conditions

  • Max. pressure: 10 bar at 20 °C (145 psi at 68 °F)

  • Min. conductivity: > 150 µS/cm , with ASR > 200 µS/cm

  • Temperature: -5.. +70 °C  (23.. 158 °F)

Zirkon® DIS (Chlorine Dioxide)

Zirkon® DIS is a potentiostatic sensor for measuring Chlorine Dioxide.

Benefits

  • Low maintenance and robust

  • Stable zero point

  • Reliable measuring values

  • Long operating life due to automatic sensor cleaning by ASR®

Applications

Disinfection

Disinfection

Drinking Water

Drinking Water

Zirkon® DIS (Chlorine Dioxide) Zirkon® DIS (Chlorine Dioxide) Zirkon® DIS (Chlorine Dioxide)

Measuring Parameter

  • 0.. 1000 µg/l (ppb)

  • 0.. 5.00/10.00 mg/l (ppm)

  • 0.. 20.00 mg/l (ppm)



Measuring parameter and range are defined by the connected Kuntze instrument or system.

Ambient Conditions

  • Max. pressure: 10 bar at 20 °C (145 psi at 68 °F)

  • Min. conductivity: > 150 µS/cm , with ASR > 200 µS/cm

  • Temperature: -5.. +70 °C  (23.. 158 °F)

Zirkon® DIS (Ozone)

Zirkon® DIS is a potentiostatic sensor for measuring Ozone.

Benefits

  • Low maintenance and robust

  • Stable zero point

  • Reliable measuring values

  • Long operating life due to automatic sensor cleaning by ASR®

Applications

Disinfection

Disinfection

Drinking Water

Drinking Water

Zirkon® DIS (Ozone) Zirkon® DIS (Ozone) Zirkon® DIS (Ozone)

Measuring Parameter

  • 0.. 1000 µg/l (ppb)

  • 0.. 5.00/10.00 mg/l (ppm)



Measuring parameter and range are defined by the connected Kuntze instrument or system.

Ambient Conditions

  • Max. pressure: 10 bar at 20 °C (145 psi at 68 °F)

  • Min. conductivity: > 150 µS/cm , with ASR > 200 µS/cm

  • Temperature: -5.. +70 °C  (23.. 158 °F)

Zirkon® DIS (Hydrogen Peroxide)

Zirkon® DIS is a potentiostatic sensor for measuring Hydrogen Peroxide.

Benefits

  • Low maintenance and robust

  • Stable zero point

  • Reliable measuring values

  • Long operating life due to automatic sensor cleaning by ASR®

Applications

Disinfection

Disinfection

Drinking Water

Drinking Water

Food & Beverage

Food & Beverage

Zirkon® DIS (Hydrogen Peroxide) Zirkon® DIS (Hydrogen Peroxide)

Measuring Parameter

  • 0.. 30.00 mg/l (ppm)

Ambient Conditions

  • Max. pressure: 10 bar at 20 °C (145 psi at 68 °F)

  • Min. conductivity: > 150 µS/cm , with ASR > 200 µS/cm

  • Temperature: -5.. +70 °C  (23.. 158 °F)

Versions

Type/Configuration Description Article number
24135260K

231212110

DIS sensor: platinum ring, zircon junction, Tepox gel, S8 plug (swivel PG 13.5), 80 mm
24135230K

Zirkon® DIS Pool
(Free Chlorine)

Zirkon® DIS Pool is a potentiostatic sensor for measuring Free Chlorine particularly in pool and spa applications.

Benefits

  • Low maintenance and robust

  • Stable zero point

  • Reliable measuring values

  • Long operating life due to automatic sensor cleaning by ASR®

Applications

Pool & Spa

Pool & Spa

Zirkon® DIS Pool (Free Chlorine) Zirkon® DIS Pool (Free Chlorine) Zirkon® DIS Pool (Free Chlorine)

Measuring Parameter

  • 0.. 1000 µg/l (ppb)

  • 0.. 5.00/10.00 mg/l (ppm)

  • 0.. 20.00 mg/l (ppm)

Ambient Conditions

  • Max. pressure: 10 bar at 20 °C (145 psi at 68 °F)

  • Min. conductivity: > 150 µS/cm , with ASR > 200 µS/cm

  • Temperature: -5.. +70 °C  (23.. 158 °F)

Zirkon® DIS Pool (Ozone)

Zirkon® DIS Pool is a potentiostatic sensor for measuring Ozone particularly in pool and spa applications.

Benefits

  • Low maintenance and robust

  • Stable zero point

  • Reliable measuring values

  • Long operating life due to automatic sensor cleaning by ASR®

Applications

Pool & Spa

Pool & Spa

Zirkon® DIS Pool (Ozone) Zirkon® DIS Pool (Ozone) Zirkon® DIS Pool (Ozone)

Measuring Parameter

  • 0.. 1000 µg/l (ppb)

  • 0.. 5.00/10.00 mg/l (ppm)

Ambient Conditions

  • Max. pressure: 10 bar at 20 °C (145 psi at 68 °F)

  • Min. conductivity: > 150 µS/cm , with ASR > 200 µS/cm

  • Temperature: -5.. +70 °C  (23.. 158 °F)

Versions

Type/Configuration Description Article number
24135145K

Zirkon® DIS Pool (Hydrogen Peroxide)

Zirkon® DIS Pool is a potentiostatic sensor for measuring Hydrogen Peroxide particularly in pool and spa applic

Benefits

  • Low maintenance and robust

  • Stable zero point

  • Reliable measuring values

  • Long operating life due to automatic sensor cleaning by ASR®

Applications

Pool & Spa

Pool & Spa

Zirkon® DIS Pool (Hydrogen Peroxide) Zirkon® DIS Pool (Hydrogen Peroxide)

Measuring Parameter

  • 0.. 30.00 mg/l (ppm)

Ambient Conditions

  • Max. pressure: 10 bar at 20°C (145 psi at 68°F)

  • Min. conductivity: > 150 µS/cm , with ASR > 200 µS/cm

  • Temperature: -5.. +70 °C  (23.. 158°F)
