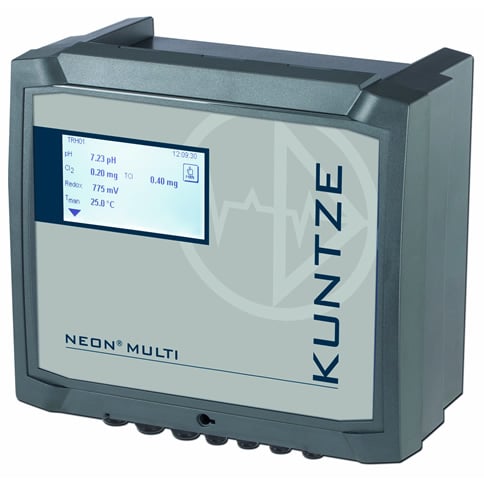

Neon® Multi

Multi channel water monitoring instrument

Neon® Multi is a leading edge measuring and control instrument. Its range of functions can be tailored according to customers‘ applications.

The entry level version is equipped with 3 measurements: disinfectant, pH and temperature. Additionally, redox potential and 5th measurement can be added (Total chlorine or conductivity).

Neon® Multi‘s water measurement process can be controlled at any time, from any place, on any device via Kuntze‘s Cloud Connect® service. All Kuntze products are Made in Germany.

Applications

Process Water

Process Water

Sterilisable Application

Sterilisable Application

Drinking Water

Drinking Water

Food & Beverage

Food & Beverage

Neon Multi

Parameter

Disinfectants

  • Free chlorine, chlorine dioxide: 0..1000µg/l, 0.. 5.00 / 10.00 / 20.00 mg/l

  • Ozone: 0..1000µg/l, 0.. 5.00 / 10.00 mg/l

  • Hydrogen peroxide: 0.. 30.00 mg/l

Temperature

  • 0.. 50.0 °C (32.. 122 °F)

pH

  • 0-14.00 pH

Redox potential (optional)

  • -1500.. +1500 mV



5th measuring input (optional)

  • Total Chlorine: 0.. 10.00 mg/l

or

  • Conductivity: 0 - 100,0 mS/cm

Digital inputs

  • Flow control, external controller stop, 2x level control, activation 2nd or 3rd control parameter set

ASR

ASR® is Kuntze's patented automatic sensor cleaning

  • ASR® keeps the electrode surfaces automatically clean and reduces maintenance efforts

  • ASR® is available for measurement of Free Chlorine, Chlorine Dioxide, Ozone and Hydrogen Peroxide

Cost reduction due to less maintenance

  • No manual cleaning

  • No refill of chemical or physical agents

  • Massively reduced calibration demand
