IL 15

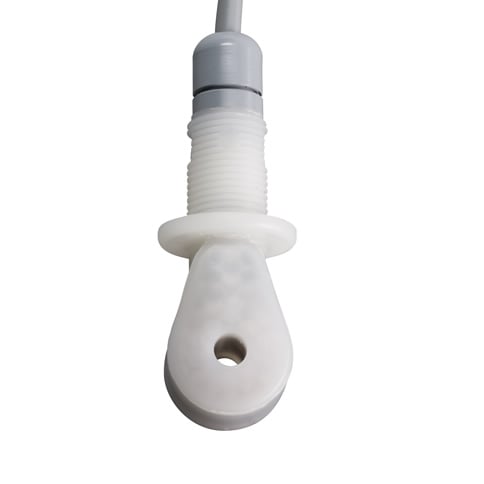

The IL 15 is a sensor for creating a toroidal conductivity measurement with an integrated NTC temperature sensor.

Benefits

  • Corrosion resistant

  • Dirt resistant

  • Small and robust construction



Applications

Process Water

Process Water

Waste Water Treatment

Waste Water Treatment

IL 15

Measuring Parameter

  • Conductivity (inductive):

    •  0.000 - 2.000 mS/cm

    •  0.00 - 20.00 mS/cm

    •  0.0 - 200.0 mS/cm

    •  0 - 2000 mS/cm

Ambient Conditions

  • Maximum pressure: 10 bar at 20°C (145 psi at 68°F)

  • Maximum temperature: 90°C  (194°F)

Versions

Type/Configuration Description Article number

IL 15

Inductive conductivity sensor with 6 m cable
26164025K


LE44 Pt

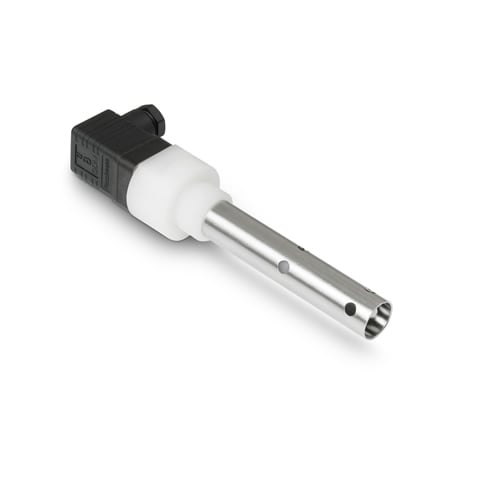

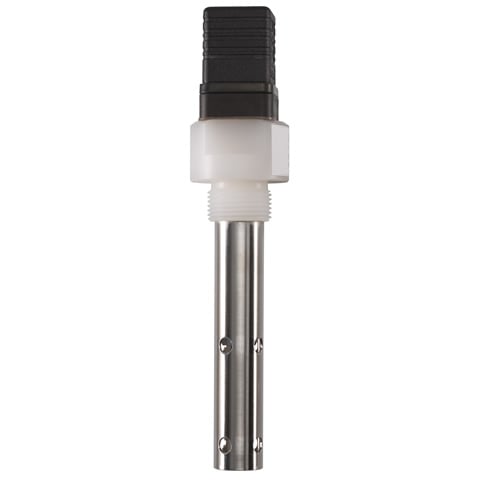

The LE44 Pt is a 2-electrode conductivity sensor for electrolytic conductivity with an integrated Pt100 temperature sensor.

Benefits

  • Integrated temperature sensor

  • Resists fouling and easy to clean

  • Two versions: 4-pole angular plug (Hirschmann) with 3/4'' male thread or 10 m cable with 1/2'' male thread

Applications

Drinking Water

Drinking Water

Process Water

Process Water

LE44 Pt LE44 Pt LE44 Pt

Measuring Parameter

  • Conductivity (conductive):

    •  0.000 - 2.000 µS/cm, c = 0.05

    •  0.00 - 20.00 µS/cm, c = 0.05

    •  0.0 - 200.0 µS/cm, c = 0.05

    •  0.000 - 2.000 mS/cm, c = 0.20

    •  0.00 - 20.00 mS/cm, c = 1.00

Ambient Conditions

  • Maximum pressure: 16 bar at 25°C (232 psi at 77°F)

  • Temperature range:

    • Plug connection: 0 to 135 °C (32 to 275 °F)

    • Cable connection: 0 to 90 °C (32 to 194 °F)

Versions

Type/Configuration Description Article number

LE44 Pt, c = 0.05

Conductivity sensor (0 - 2, 0 - 20, 0 - 200 µS/cm)
26125252K

LE44 Pt, c = 0.20

Conductivity sensor (0 - 2 mS/cm)
26125253K

LE44 Pt, c = 1.00

Conductivity sensor (0 - 20 mS/cm)
26125254K

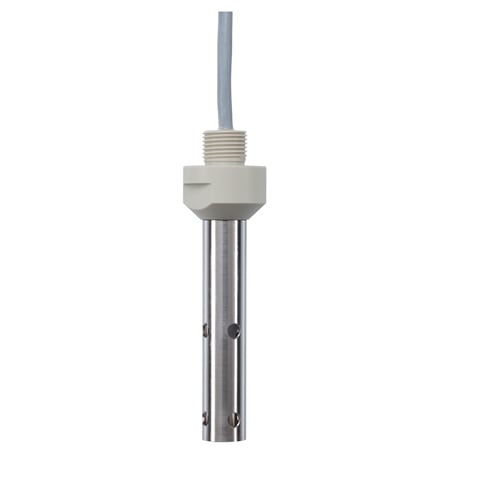

LE44 Pt 4SCR, c = 0.05

Conductivity sensor (0 - 2, 0 - 20, 0 - 200 µS/cm) with 10 m fixed cable
26125257K

LE44 Pt 4SCR, c = 0.20

Conductivity sensor (0 - 2 mS/cm) with 10 m fixed cable
26125255K

LE44 Pt 4SCR, c = 1.00

Conductivity sensor (0 - 20 mS/cm) with 10 m fixed cable
26125256K


Zirkon® CON

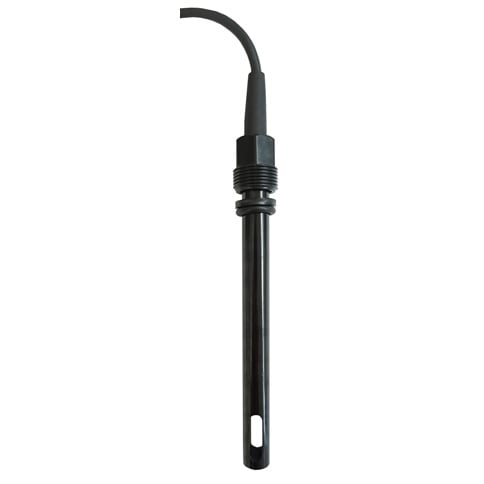

Zirkon® CON is a 2-electrode conductivity sensor for electrolytic conductivity with an integrated Pt100 temperature sensor.

Benefits

  • Easy installation due to standard 12 mm sensor design

  • Integrated temperature sensor

  • 5 m fixed cable



Applications

Drinking Water

Drinking Water

Process Water

Process Water

Zirkon® CON

Measuring Parameter

  • Conductivity (conductive): 0.00 - 20.00 mS/cm



Ambient Conditions

  • Maximum pressure:  2 bar at 25°C (29 psi at 77°F)

  • Temperature range: 0 to 80.0°C (32 to 176°F)



Versions

Type/Configuration Description Article number

261400800

Conductivity sensor, c = 1.0 mS/cm
26120004K
